PET Bottle Soft Drink Filling Machine (3 In 1)

The DXGF carbonated drink filling monoblock is used to fill carbonated drinks into plastic or glass bottles.Washing,filling,sealing can be carried out on the same machine.The design of the machine is scientific and reasonable.


Product Detail

DXGF 8-8-3

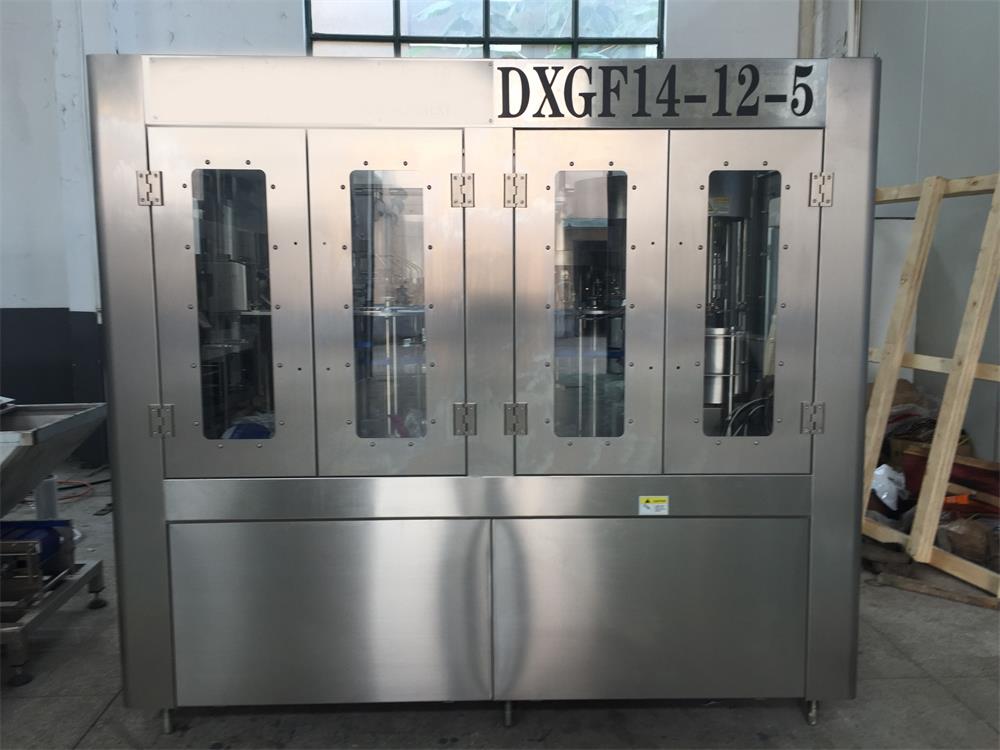

DXGF 14-12-5

DXGF16-16-5

DXGF24-24-8

DXGF 32-32-8

Production Description

1. Washing Part
● All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean.
● 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
● 304 stainless steel washing pumps.

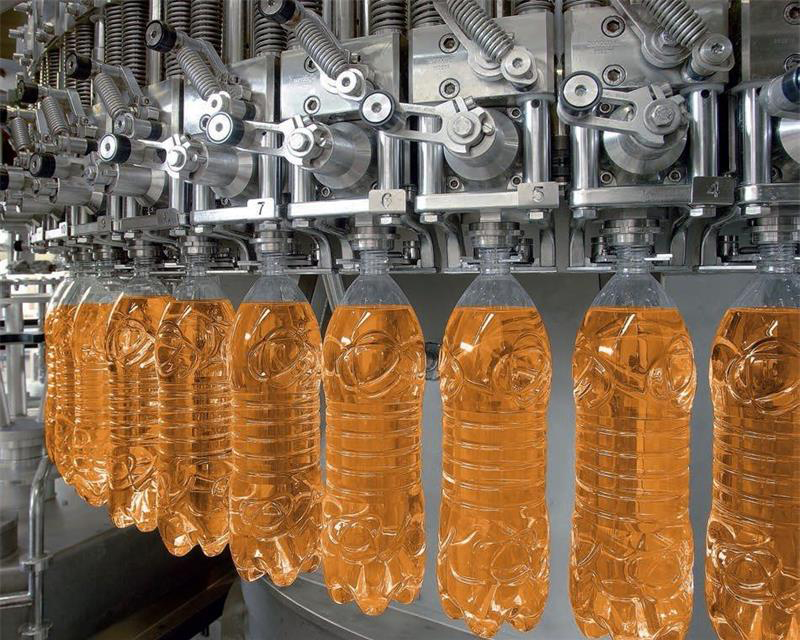

PET Bottle (1)

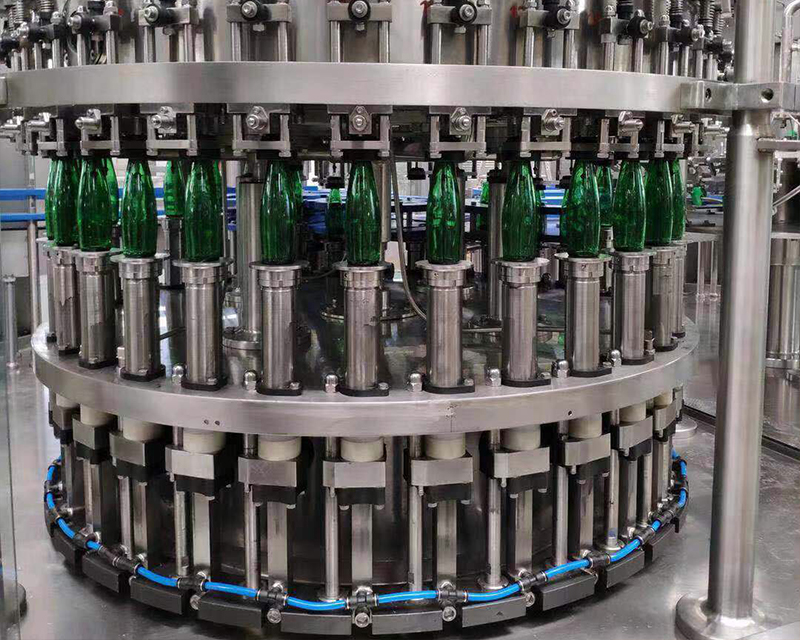

PET Bottle (2)

2.Filling part
● Isobaric filling , & filling smoothly & steadily.
● The centering oriented adopts guide rod with special bottle neck holding.
● Filling temperature: 0～４℃.
● All 316 stainless steel contact parts & liquid tank, fine polish, easy to clean.

3. Capping part:
● Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
● All 304 stainless steel construction.
● No bottle no capping and Automatic stop when lack of bottle.

Parameter

Project Name:Carbonated Soft Drink Filling Machine
Model XGF14-12-5 XGF16-16-5 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-15
Washing Nos 14 16 24 32 40 50
Filling Nos 12 16 24 32 40 50
Capping Nos 5 5 8 8 10 15
Capacity(BPH) 3000 5000 8000 12000 15000 18000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle height 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature(℃） 0～４℃
Filling theory Isobaric filling
Application Carbonated soft drink filling machine
Total powder 1.5KW 2.2KW 3KW 3KW 5.5KW 7.5KW
Measurement(mm) 2360*1770*2700 2760*2060*2700 2800*2330*2700 3550*2650*2700 4360*3300*2700 4720*3545*2700
Weight 3000kg 4000kg 4800kg 5500kg 6500kg 10000kg

Configuration List

No Name Brand
1 Main motor ABB
2 Cap unscrambler motor FEITUO(China)
3 Conveyor motor FEITUO(China)
4 Rinsing pump CNP (China)
5 Solenoid valve FESTO
6 Cylinder FESTO
7 Air-T contactor FESTO
8 Pressure adjust valve FESTO
9 Inverter MITSUBISHI
10 Power switch MIWE(TAIWAN)
11 Contactor SIEMENS
12 Relay MITSUBISHI
13 Transformer MIWE(TAIWAN)
14 Approx switch TURCK
17 PLC MITSUBISHI
18 Touch screen Pro-face
19 Air components FESTO
20 AC Contactor Schneider
21 Micro relay MITSUBISHI

Why Choose Us

1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 6000m2, with independent property rights.

2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.

3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.

4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.

5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.

6. We will supply the spare parts fast and with cost price.

  • Previous:
  • Next:

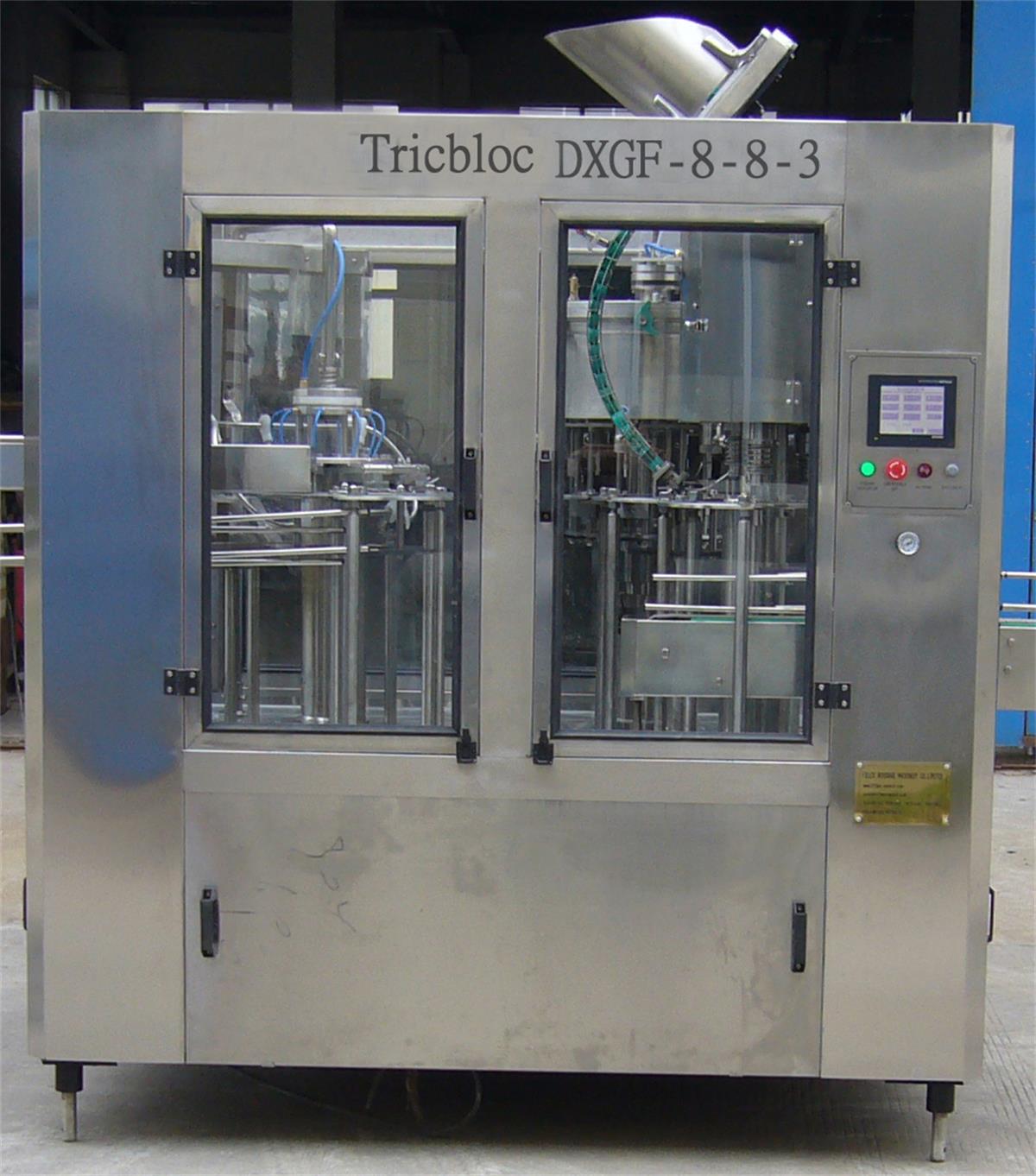

    • DXGF 8-8-3

    Project Name:Carbonated Soft Drink Filling Machine
    Model XGF14-12-5 XGF16-16-5 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-15
    Washing Nos 14 16 24 32 40 50
    Filling Nos 12 16 24 32 40 50
    Capping Nos 5 5 8 8 10 15
    Capacity(BPH) 3000 5000 8000 12000 15000 18000
    Suitable bottle and cap PET circular or square with screw cap
    Bottle Volume 150ml to 2.5Ltr (Customized)
    Bottle diameter(mm) Dia50-Dia115mm
    Bottle height 160-320mm
    Compress air pressure(Mpa) 0.3-0.4Mpa
    Washing medium Aspetic water
    Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
    Filling temperature(℃） 0～４℃
    Filling theory Isobaric filling
    Application Carbonated soft drink filling machine
    Total powder 1.5KW 2.2KW 3KW 3KW 5.5KW 7.5KW
    Measurement(mm) 2360*1770*2700 2760*2060*2700 2800*2330*2700 3550*2650*2700 4360*3300*2700 4720*3545*2700
    Weight 3000kg 4000kg 4800kg 5500kg 6500kg 10000kg

    IMG_0455

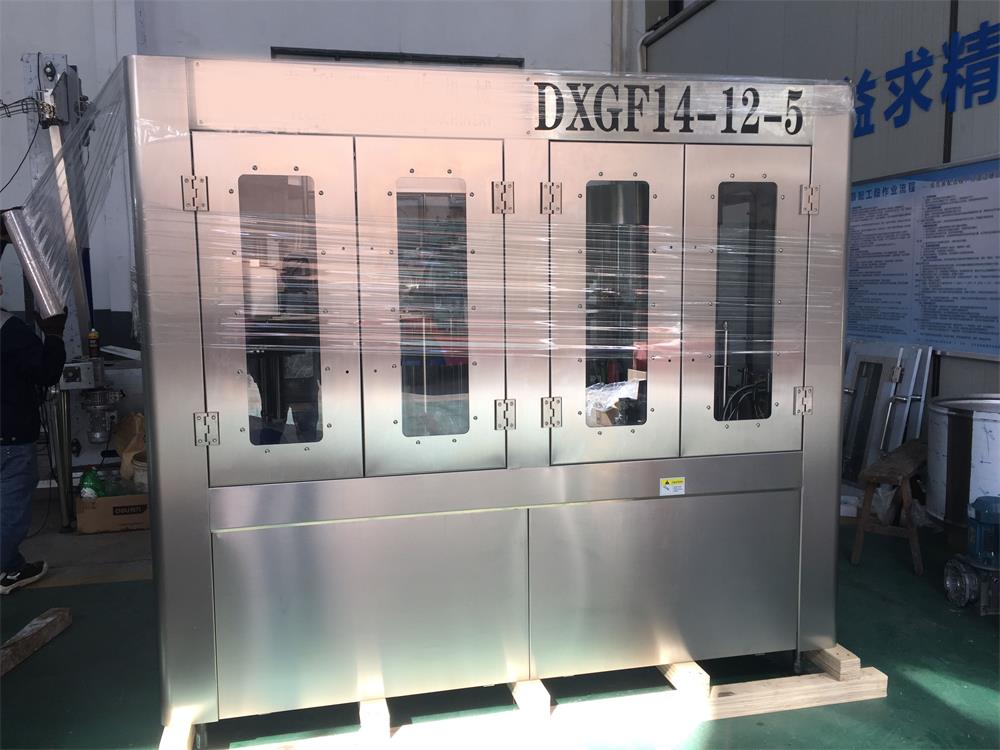

    IMG_0489

    Project Name:Carbonated Soft Drink Filling Machine
    Model XGF14-12-5 XGF16-16-5 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-15
    Washing Nos 14 16 24 32 40 50
    Filling Nos 12 16 24 32 40 50
    Capping Nos 5 5 8 8 10 15
    Capacity(BPH) 3000 5000 8000 12000 15000 18000
    Suitable bottle and cap PET circular or square with screw cap
    Bottle Volume 150ml to 2.5Ltr (Customized)
    Bottle diameter(mm) Dia50-Dia115mm
    Bottle height 160-320mm
    Compress air pressure(Mpa) 0.3-0.4Mpa
    Washing medium Aspetic water
    Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
    Filling temperature(℃） 0～４℃
    Filling theory Isobaric filling
    Application Carbonated soft drink filling machine
    Total powder 1.5KW 2.2KW 3KW 3KW 5.5KW 7.5KW
    Measurement(mm) 2360*1770*2700 2760*2060*2700 2800*2330*2700 3550*2650*2700 4360*3300*2700 4720*3545*2700
    Weight 3000kg 4000kg 4800kg 5500kg 6500kg 10000kg

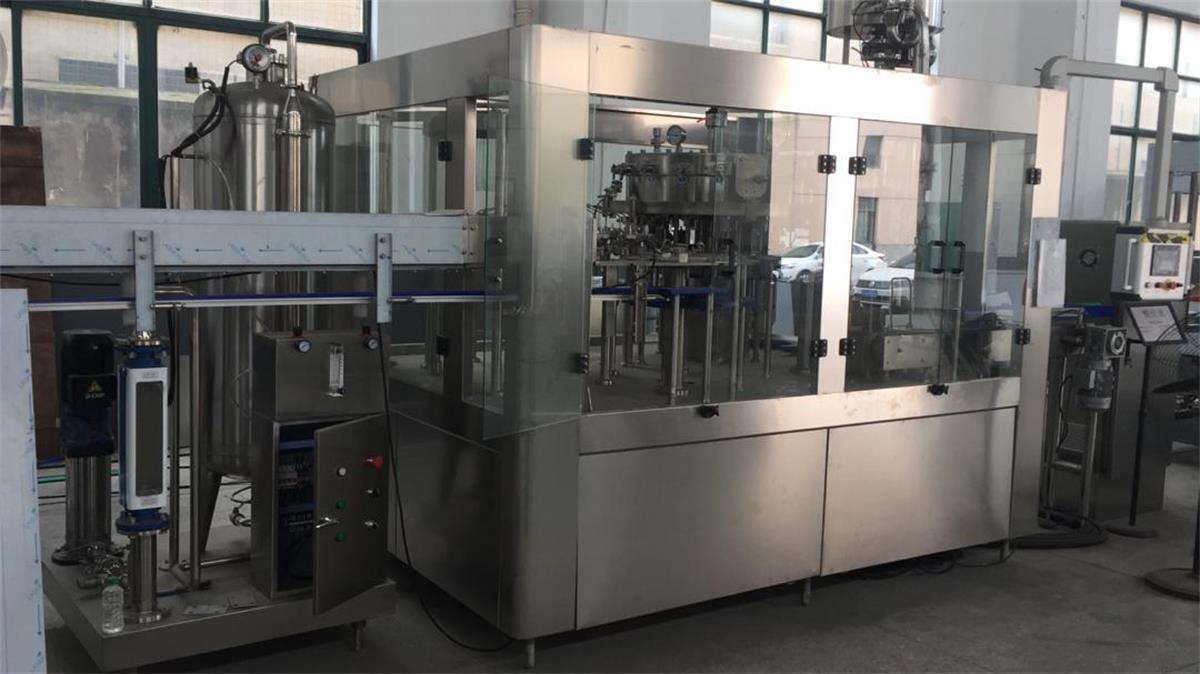

    DXGF16-16-5 (2)

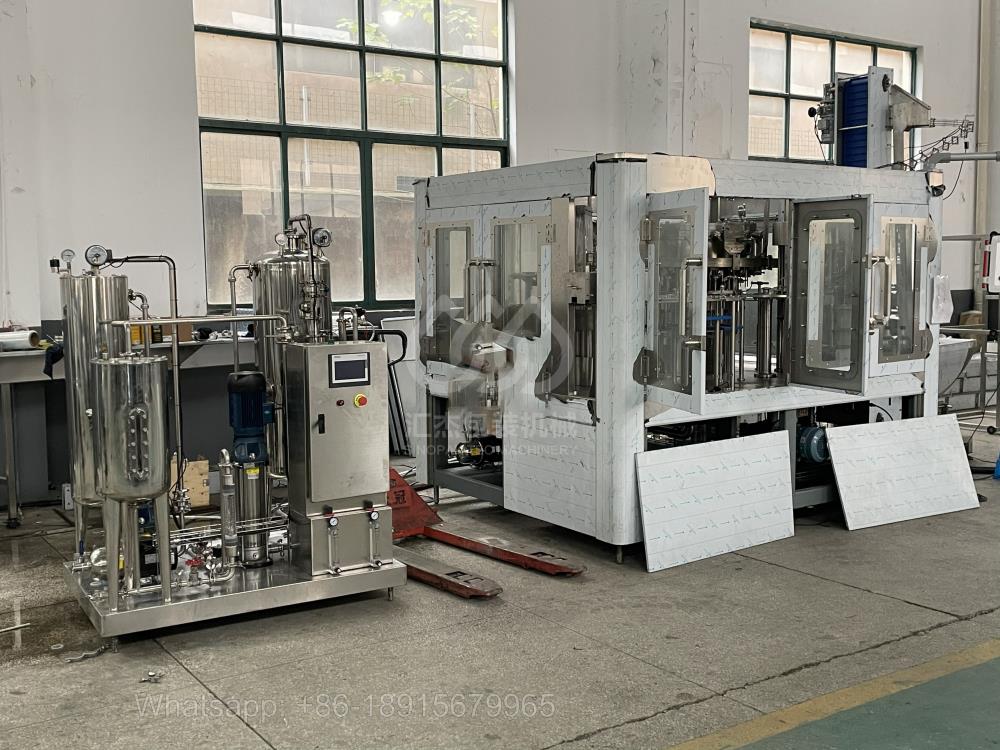

    IMG_0944~1

    Project Name:Carbonated Soft Drink Filling Machine
    Model XGF14-12-5 XGF16-16-5 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-15
    Washing Nos 14 16 24 32 40 50
    Filling Nos 12 16 24 32 40 50
    Capping Nos 5 5 8 8 10 15
    Capacity(BPH) 3000 5000 8000 12000 15000 18000
    Suitable bottle and cap PET circular or square with screw cap
    Bottle Volume 150ml to 2.5Ltr (Customized)
    Bottle diameter(mm) Dia50-Dia115mm
    Bottle height 160-320mm
    Compress air pressure(Mpa) 0.3-0.4Mpa
    Washing medium Aspetic water
    Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
    Filling temperature(℃） 0～４℃
    Filling theory Isobaric filling
    Application Carbonated soft drink filling machine
    Total powder 1.5KW 2.2KW 3KW 3KW 5.5KW 7.5KW
    Measurement(mm) 2360*1770*2700 2760*2060*2700 2800*2330*2700 3550*2650*2700 4360*3300*2700 4720*3545*2700
    Weight 3000kg 4000kg 4800kg 5500kg 6500kg 10000kg

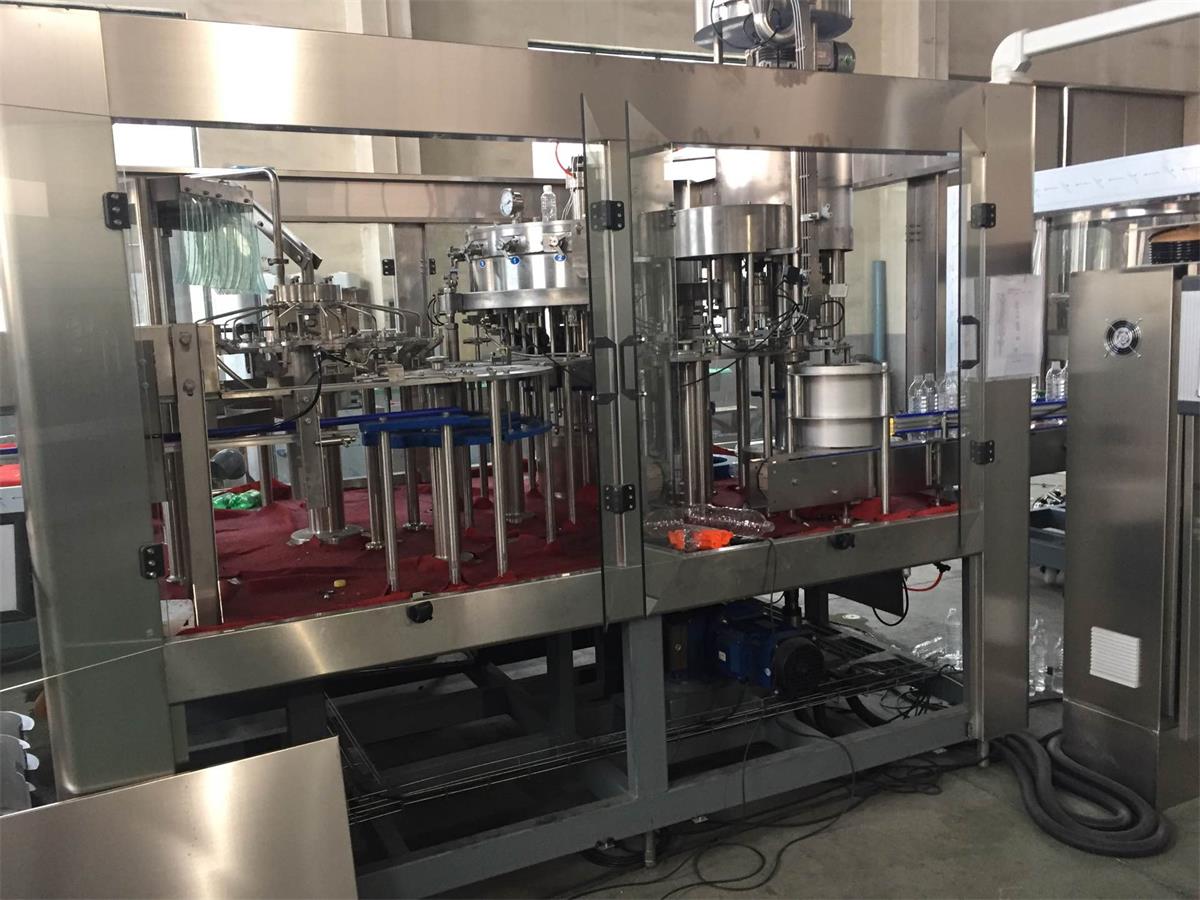

    DXGF 24248

    Project Name:Carbonated Soft Drink Filling Machine
    Model XGF14-12-5 XGF16-16-5 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-15
    Washing Nos 14 16 24 32 40 50
    Filling Nos 12 16 24 32 40 50
    Capping Nos 5 5 8 8 10 15
    Capacity(BPH) 3000 5000 8000 12000 15000 18000
    Suitable bottle and cap PET circular or square with screw cap
    Bottle Volume 150ml to 2.5Ltr (Customized)
    Bottle diameter(mm) Dia50-Dia115mm
    Bottle height 160-320mm
    Compress air pressure(Mpa) 0.3-0.4Mpa
    Washing medium Aspetic water
    Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
    Filling temperature(℃） 0～４℃
    Filling theory Isobaric filling
    Application Carbonated soft drink filling machine
    Total powder 1.5KW 2.2KW 3KW 3KW 5.5KW 7.5KW
    Measurement(mm) 2360*1770*2700 2760*2060*2700 2800*2330*2700 3550*2650*2700 4360*3300*2700 4720*3545*2700
    Weight 3000kg 4000kg 4800kg 5500kg 6500kg 10000kg

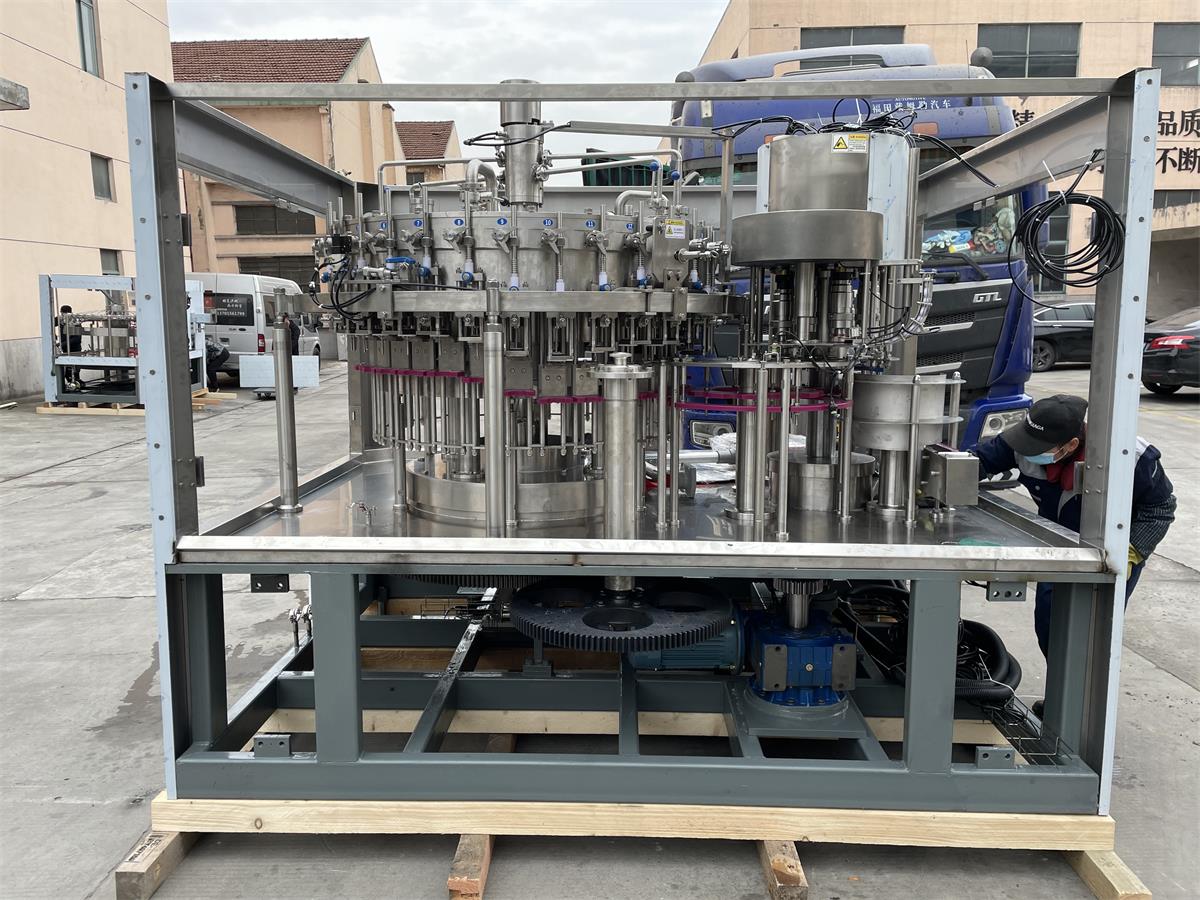

    DXGF 32-32-8 (2)

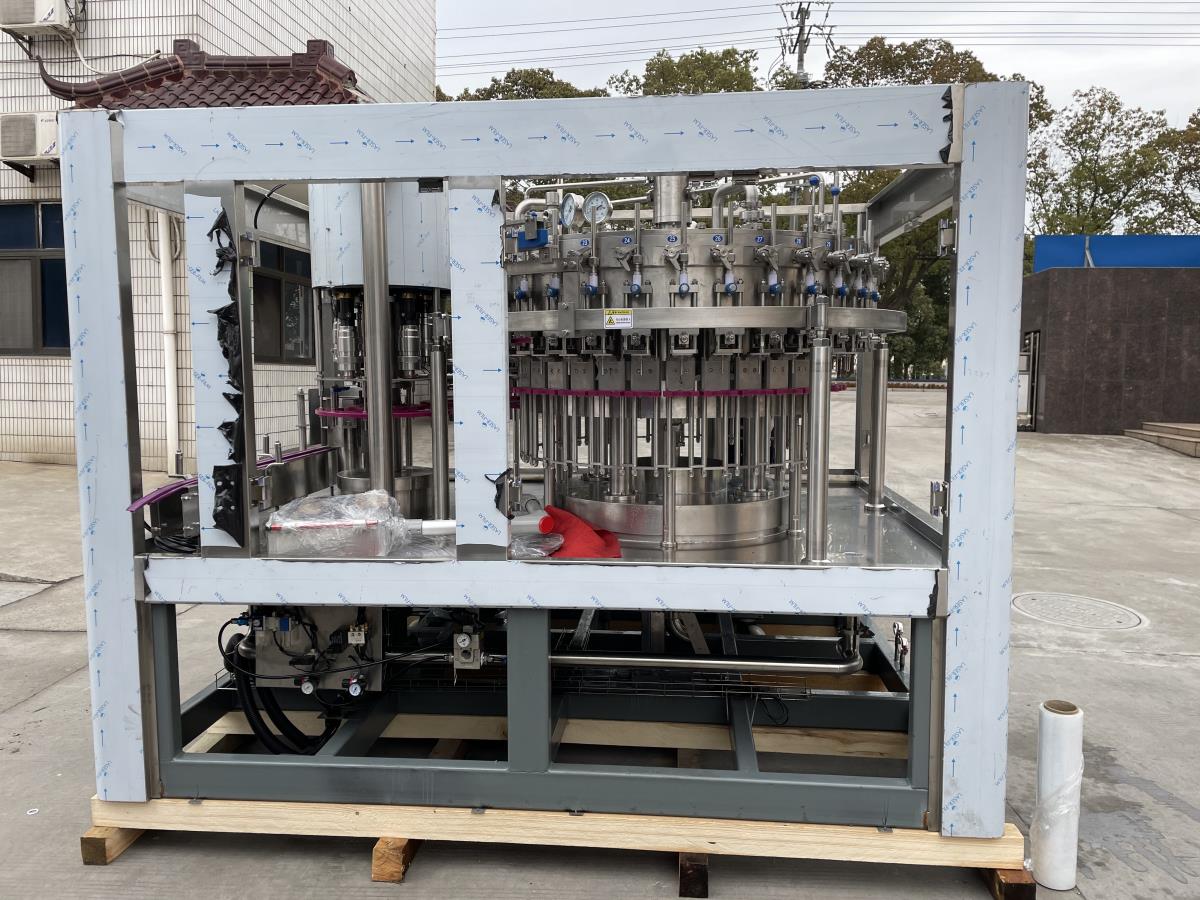

    DXGF 32-32-8 (1)
