Wholesale Dealers of Glass Bottle Filling Machine/Line/Plant - Carbonated Soft Drink Can Filiing Seaming – SINOPAK Detail:

Filler Station:
● High precision filling nozzle , ensure high filling precision & filling smoothly & steadily.
● Isobar Pressure filling nozzles which ensure minimal loss of CO2 from the drink.
● All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean.
● CIP ( clean in place) sideway pipeline in-build, can connect with CIP station or Tap water to clean.

Capper station:
● Electromagnetic sealing heads.
● All 304stainless steel construction.
● No cans no sealing and Automatic stop when lack of sealer.

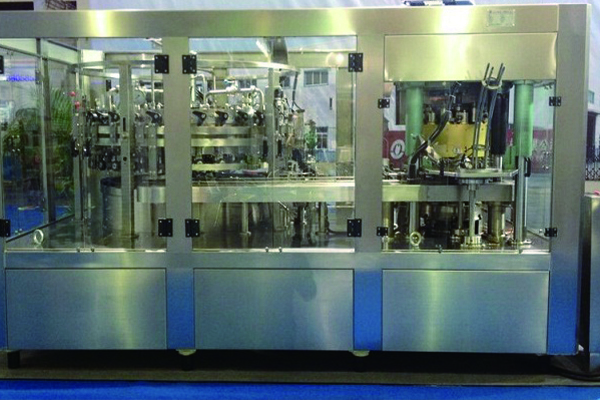

20170211125956782
14300000095850129376426065140

Electric Part & Safe Device & Automation:
● When accident system automatic stop & alarm.
● Emergency switch when accident.
● PLC control full-automatic working, inverter in-build, speed adjustable.
● Touch-screen Control Panel, easy operate.
● Famous Omron brand sensor & other electric parts adopted, ensure system heavy duty running.

Machine Base & Machine Construction:
● 304 stainless steel frame.
● Excellent start wheel design, easy change over parts.
● Machine Base with anti-rust process, ensure the forever antirust.
● All seal where liquid may Leakage & base neck come with rubber, water proof.
● Manual lubrication system.

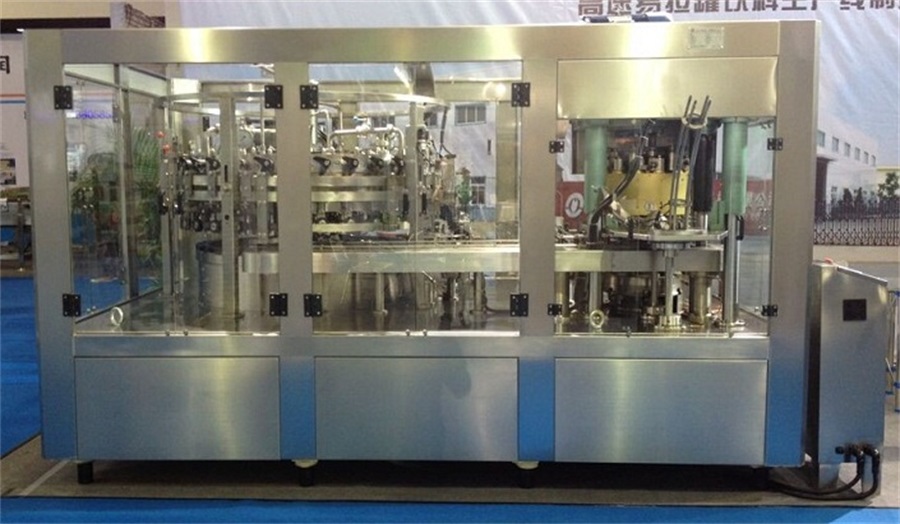

CSD (2)

This machine is suitable for isobaric filling and sealing of carbonated beverages in the beer and beverage industry. It has the characteristics of fast filling and sealing speed, consistent liquid level in the tank to the tank opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation, etc. It is an ideal filling and sealing equipment for various beverages and breweries.

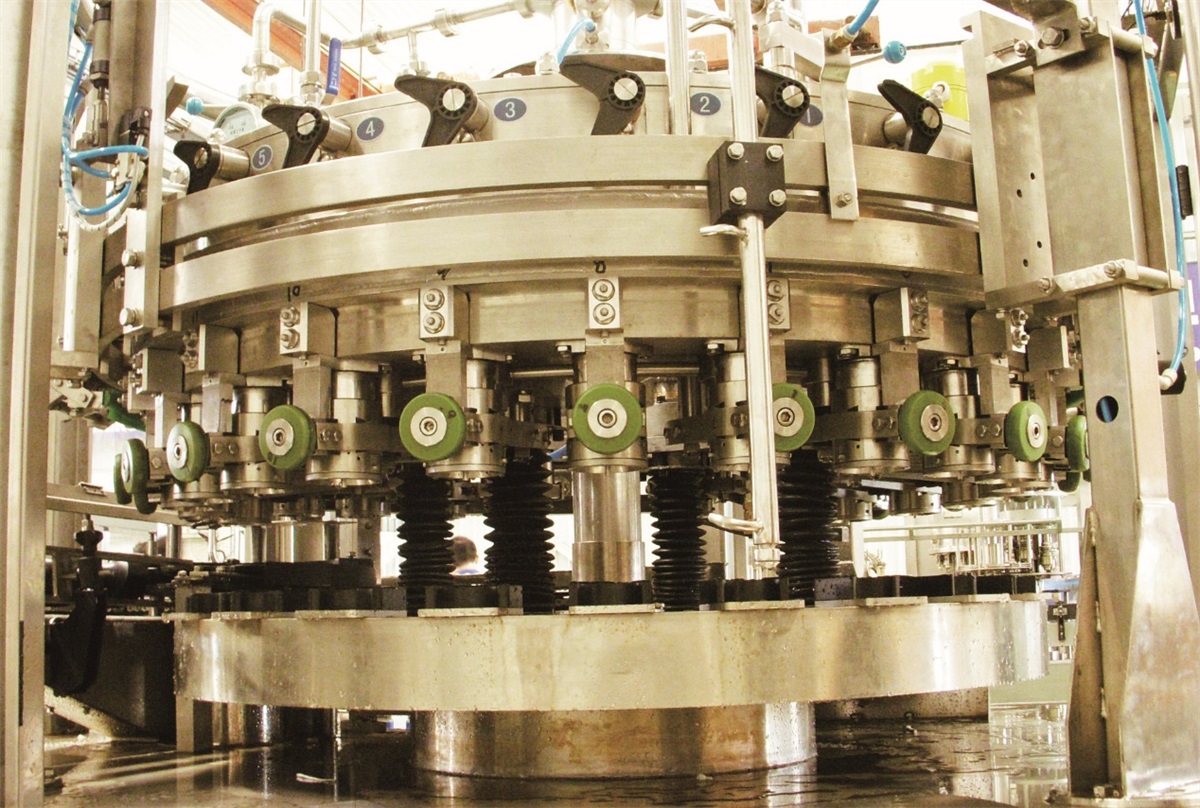

CSD (1)

Performance and Features

This machine is especially suitable for filling and sealing cans in the beer industry. The filling valve can carry out secondary exhaust to the can body, so that the amount of oxygen added to the beer can be reduced to a minimum during the filling process.
Filling and sealing are integral design, using the principle of isobaric filling. The can enters the filling machine through the can feeding star wheel, reaches the predetermined center after the can table, and then the filling valve descends along the supporting cam to center the can and pre-press to seal. In addition to the weight of the centering cover, the sealing pressure is generated by a cylinder. The air pressure in the cylinder can be adjusted by the pressure reducing valve on the control board according to the material of the tank. The pressure is 0 ~ 40KP (0 ~ 0.04MPa). At the same time, by opening the pre-charge and back-pressure valves, while opening the low-pressure annular channel, the back-pressure gas in the filling cylinder rushes into the tank and flows into the low-pressure annular channel. This process is used to implement a CO2 flushing procedure to remove the air in the tank. Through this procedure, the oxygen increase during the filling process is minimized and no negative pressure is generated in the tank, even for very thin-walled aluminum cans. It can also be flushed with CO2.
After the pre-fill valve is closed, the equal pressure is established between the tank and the cylinder, the liquid valve is opened by the spring under the action of the operating valve stem, and the filling starts. The pre-filled gas inside returns to the filling cylinder through the air valve.
When the liquid level of the material reaches the return gas pipe, the return gas is blocked, the filling is stopped, and an over pressure is generated in the gas part of the upper part of the tank, thereby preventing the material from continuing to flow down.
The material pulling fork closes the air valve and the liquid valve. Through the exhaust valve, the exhaust gas balances the pressure in the tank with the atmospheric pressure, and the exhaust channel is far away from the liquid surface, so as to prevent the liquid from being brought out during exhaust.
During the exhaust period, the gas at the top of the tank expands, the material in the return pipe falls back into the tank, and the return pipe is emptied.
At the moment when the can is out, the centering cover is lifted under the action of the cam, and under the action of the inner and outer guards, the can leaves the can table, enters the can conveying chain of the capping machine, and is sent to the capping machine.
The main electrical components of this machine adopt high-quality configuration such as Siemens PLC, Omron proximity switch, etc., and are designed into a reasonable configuration form by the company’s senior electrical engineers. The entire production speed can be set by itself on the touch screen according to the requirements, all common faults are automatically alarmed, and the corresponding fault causes are given. According to the severity of the fault, the PLC automatically judges whether the host can continue to run or stop.
Functional characteristics, the whole machine has various protections for the main motor and other electrical appliances, such as overload, overvoltage and so on. At the same time, the corresponding various faults will be automatically displayed on the touch screen, which is convenient for users to find the cause of the fault. The main electrical components of this machine adopt international famous brands, and brands can also be formulated according to customer requirements.
The whole machine is framed by stainless steel plate, which has good waterproof and anti-rust functions.

DSCN5937
D962_056

Model

TFS-D-6-1

TFS-D-12-1

TFS-D-12-4

TFS-D-20-4

TFS-D-30-6

TFS-D-60-8

Capacity(BPH)

600-800

1500-1800

4500-5000

12000-13000

17000-18000

35000-36000

Suitable bottle

PET Can,Aluminum Can ,Iron Can and so on

Filling precision

≤±5mm

Filling pressure

≤0.4Mpa

Powder(KW)

2

2.2

2.2

3.5

3.5

5
